Updating Your Proffieboard

This page is a "somewhat" simplified explanation of the steps on Fredrik's site and in the Proffieboard manual. If you are confused by a step or get error messages during the upload process it's best to ask for help on theCrucible or by joining the Open Source Saber Group or Proffieboard Support Group on FB.

Despite what those who haven't used, don't understand or were simply misinformed may have told you, you most certainly do not need to be a programmer or need to actually "code" to upload to your Proffieboard saber. There seems to be a lot of "scary" stories about using Proffieboard that are propagated by misinformed individuals, don't let them dissuade you from enjoying your Proffieboard and all it can offer, just answer the below questions before moving forward.

Do you have and can you use a computer with a minimum level of competence? PC or Mac (unfortunately Chromebooks do not support Arduino to my knowledge).

Can you follow instructions? If you are confused by those instructions, can you ask for help without feeling like the world is going to end?

If you answered "Yes" to the above then you're good, move on to the next step. If you answered "No" to either or both, maybe come back when the answer is "Yes" or re-consider purchasing a "Proffieboard".

You will Need

• A Proffieboard (these instructions assume you have a Proffieboard v2.2 (if you have the v1.5 it's exactly the same but you'll need a config for the v1 in place of the v2, otherwise exactly the same).
• A computer (this was covered above so why are you reading this?)
• A micro USB data cable (not a charging cable). If you're unsure if your cable is a data cable Google has a lot of resources, Google is a website that you can type questions into and it will give you pages you can read for the answer, it's pretty great if you haven't tried it. If you can't find Google, you should probably stop here, the rest is too complicated...
• a recommended SD Card (refer to the back of the manual for the recommended SD cards). Even if your saber came with an SD, do yourself a favor and make sure it's one of the recommended cards, some installers cut corners on SD cards and you'll only end up with headaches and troubleshooting if you're using a slow or sub par SD.
  • Your SD card will hold all of your "fonts" the sound files used by your saber as well as some .ini files AND a copy of your config.h file (see Step 1)
  • Depending on your computer and how your board was first set up your computer may connect to your SD when you first connect the board, you will need to "Eject" the SD card before disconnecting or you may corrupt or erase the contents of the SD.

Step 1

You will need your config.h file. This is the "recipe" for your specific saber, the buttons (prop), blade configuration, options (defines), fonts and styles. This file is all you need to be able to update your saber. You will want a text editing program like Sublime Text to make editing simple, DO NOT use a word processing program like Word as this will add characters and formatting that is not supported.

If you received your saber from an installer they should have a copy of your config on the SD card (if not you will want to request). If you are building your saber you can refer to the manual or use Fredrik's tool at the bottom of this page, Proffieboard V2.2

BEFORE doing anything, save a copy of your config on your computer as well as the other contents of your SD card, SD cards can be corrupted or damaged, save yourself a future headache and create a backup copy, you'll thank me later.

Step 2 - Only necessary if this is the FIRST TIME you are setting up your Proffieboard on your computer

PC ONLY! Mac Users do not need to do this step.

NEW OPTION! -

Profezzorn has created a exe file that will handle the driver setup for Windows automatically, no more need to run Zadig!

Download and run this file, it will update your driver automatically, you can then proceed to Step 3.





Additional info here: https://crucible.hubbe.net/t/zadig-is-dead-long-live-libdwi/2799

Old Option -

This step can be easy or hard depending on your computer and how closely you follow the instructions, if you get hung up or lost this is where the "asking for help" comes in. Once you've successfully done this step once you never have to do it again unless you get a new computer, new OS on that computer or did something wrong.

• Connect your Proffieboard to your computer using the micro USB cable. You do want to be careful connecting, do not yank or put stress on the board or USB connector or you may damage it.
• You will need the Proffieboard plugin for Arduino, follow these instructions to set it up properly.
  • The above step includes the "dreaded" Zadig for Windows (you don't do this for Mac), if you do Zadig correctly the first time you NEVER have to do it again.

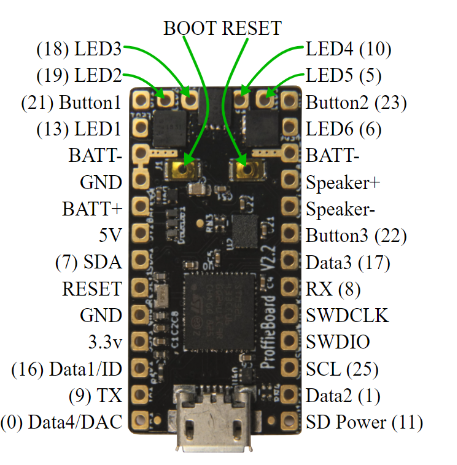

One NOTE:, if you're running Zadig you want to hold the BOOT button and then press and release the RESET button (do not release the BOOT button until after you release RESET). Yes,those are really tiny buttons, use a fingernail or something small and plastic. Also, I hope this is common knowledge but your Proffieboard is an electrical device, as such NEVER, EVER touch it with something metal unless you want to damage it.

A Second NOTE: you will obviously need to be able to access the BOOT and RESET buttons on your actual Proffieboard, if your installer did not give you easy access to these they probably need to rethink taking someone's money for a Proffieboard saber. I'm sure they are nice people but they either don't understand how Proffieboard works or they don't really care about you after they take your money- in either case, if you can't get to the buttons on the board, stop here, reach out to the installer and have them explain how to access them.

Step 3

OK, you made it! That was the hardest part and if you did it correctly you can now skip that step every time you want to update your saber. Pat yourself on the back, according to some corners of the internet that's one of the Herculean steps to being able to use a Proffieboard, you are now a programming demi-god! (Feel free to update your resume now, I'll wait...)

"You've taken your first steps into a larger world", ok now that that's out of the way:

You need Arduino on your computer if you don't already have it installed. Arduino is basically the "chef" who will be following the "recipe" from your config to make your custom OS for your saber. Arduino IDE

• I recommend using the "Legacy IDE (1.8.X)" version (scroll down the page), some users have difficulty with v2.1.X

You need the ProffieOS software, download from here: ProffieOS

• You will unzip the software to a folder or your desktop. Make sure you unzip the software, if you try to run the software out of a zipped file you'll get errors on the next steps.
  • The ZIP file will generate a folder named "ProffieOS" with all contents included.
    DO NOT rename this folder. (If you have different versions of the OS create different folders to put them in like; "OS7/ProffieOS" or "v7-10/ProffieOS", etc.
    Arduino requires all contents of the OS be contained within a folder named "ProffieOS".
• Remember that config.h file I said you needed all the way back in Step 1, save that file inside the "ProffieOS/config/" folder and make sure you save it as a ".h" file, not a ".txt" file.

Step 4

Now open your config.h file with SublimeText so we can update some things, for reference you can use the 'Ctrl' + 'V' buttons on your keyboard to "Paste" just in case you forgot.

If you need help building or updating your config this tool is available to help, just be sure to read through everything step-by-step.

Config Helper Tool

Watch this video:

If you didn't understand anything in that video, watch it again. If it doesn't make sense by the third showing, time to ask for some help as noted in the Introduction.

Step 5

Once you've updated your config, you are ready to give it to Arduino to upload to your saber. If you have disconnected your saber since Step 2, then reconnect it now or nothing will happen. Also, now is a good time to make a backup of the new config.

• Launch Arduino on your computer if it's not already open.
• Click "File > Open" and look for the ProffieOS folder you unzipped onto your computer.
• Inside that folder open "ProffieOS.ino"

Watch this video:

If you get an error message in Arduino, very quickly get up and exit the building altogether, the countdown to your computer and lightsaber exploding will begin very shortly and you need to give yourself at least 100 ft of distance depending on the integrity of the structure, totally kidding of course (if you actually believed that, I have a bridge in NY I can sell you really cheap) (if you didn't get that reference send me your CC information and Social Security number and I'll take care of it for you free of charge).

Ok, kidding aside (of course if you did run out of the building you're not reading this and I would feel bad but it's actually kinda funny so sorry, not sorry). If you get an error message in Arduino or it doesn't successfully upload this is where that "asking for help" comes into play again. There are a number of reasons things can go wrong, sometimes it's as simple as a missing comma or bracket in your config or a typo when you were defining your config, or if you see the word "FLASH" followed by "overflowed by" that just means you tried to fit more than your board can hold. Here are several resources to look through and if these don't help use the links in the intro to ask for help on theCrucible or the FB groups.

Possible (but not all) Errors:

Is it Uploading?

General Error Messages

Connection Issues

Port Issues

Recover From a Bad Upload

If you have Connection or Port issues check out this video

Note you will need to use pastebin.com to paste a copy of your config and the error message you are getting, this lets those who will help know what is actually wrong even if it doesn't make sense to you. Copy your entire config and paste in the New Paste box and scroll down and click "Create New Paste", then click and copy the URL at the top of your browser and paste it where you ask for help. Repeat for the error message in Arduino (just click the "Copy Error Message' button and it will copy it for you).

Step 6

OK, if you made it past all of that (I know it looks like a lot but after you've done it once or twice you won't need to come back here unless you really want to), go and enjoy your saber!

You're now officially a Jedi or Sith, you pick (if you sent me the CC and Social Security info earlier I'll have your certificate on the way, just note it may take more than 12 parsecs to arrive depending on courier, just be patient, I find if you stare out the front door daily for hours on end it makes the courier feel bad and they travel faster to get it to you or post in the various FB groups about how long it is taking to arrive, that usually makes things go faster too, you just have to ask daily or it gets missed).
